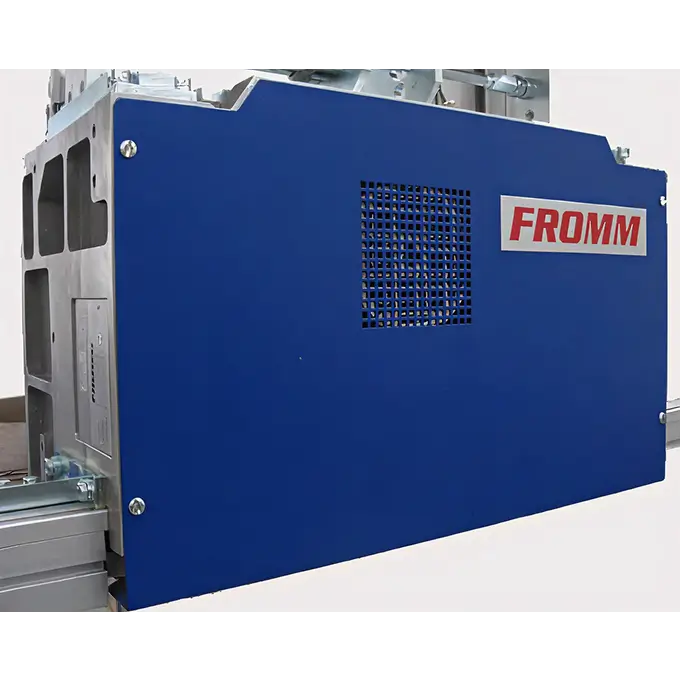

MH600 Automatic Plastic Strapping Head
MH600 Automatic Plastic Strapping Head
Designed for automatic heavy duty industrial PET strapping installations. The head processes strapping from 13-19 mm of various thickness and quality. This automated system will ensure increased throughput and efficiency.
Features
- Compact and modular design
- One piece of aluminium cast housing
- Strap tension up to 7000N, adjustable
- Strap guide open feature
- Well proven separate feeding, tensioning and friction weld sealing systems
- High consistent seal efficiency because of environment temperature monitoring
- Use of state-of-the-art manufacturing, controlling and material technology
- Three side suspension points and plug connections for easy integration
- Long life and maintenance friendly, resulting in high availability
Benefits
- Low maintenance
- Long service intervals
- Proven FROMM technology
- Can be retrofitted into other systems
- Low cost of spare parts
- Excellent seal efficiency
Technical Specifications
- Compatible Strap TypesPolyester (PET)
- Strapping Dimensions13.00 – 19.00mm (Width) x 0.64 – 1.53mm (Thickness)
- Sealing MethodHeat Welding
- Strap Tension7000N (Adjustable)
- Feed/Retract Speed5.3 Metres per second
- Tension Speed105mm per second
- Package Sizemin. Width 250mm x Height 180mm, max. Width 3000mm x Height 3000mm
- Power Supply230V
- Consumption1.1KW
- Control Voltage24V DC
- DimensionsLength 615mm x Width 307mm x Height 450mm
- Weight115KG
Datasheet
-
- MH600 Download
