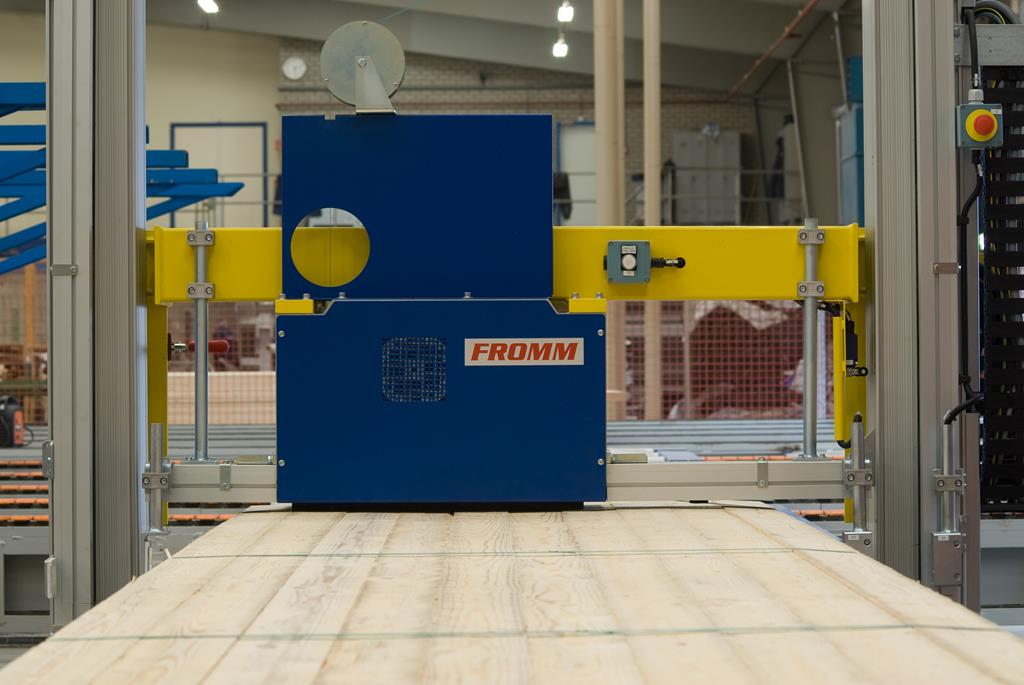

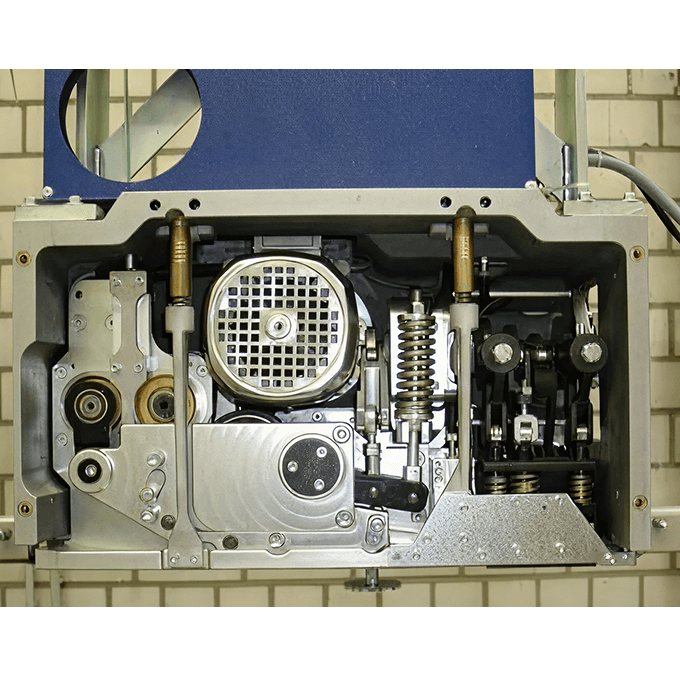

MH610 Automatic Strapping Head
MH610 Automatic Strapping Head
Engineered for automatic, heavy duty industrial polyester (PET) strapping applications. The head can process PET strapping from widths 25-32 mm without any modifications. High strap tension makes it ideal for securing heavy, unitised goods in the aluminium and steel industry.
Features
- Compact and modular design
- One piece of aluminium cast housing
- High strap tension up to 7000N, adjustable
- 25mm or 32mm strap width usable, without changing parts
- Strap guide open feature
- Well proven separate feeding, tensioning and friction weld sealing systems
- High consistent seal efficiency because of environment temperature monitoring
- Use of state-of-the-art manufacturing, controlling and material technology
- Three side suspension points and plug connections for easy integration
- Long life and maintenance friendly, resulting in high availability
Benefits
- Low maintenance
- Long service intervals
- Proven FROMM technlogy
- Can be retrofitted into other systems
- Excellent seal efficeincy
Technical Specifications
- Compatible Strap TypesPolyester (PET)
- Strapping Dimensions25.00 – 32.00mm (Width) x 0.40 – 1.35mm (Thickness)
- Sealing MethodHeat Welding
- Strap Tension7000N (Adjustable)
- Feed/Retract Speed5.3 Metres per second
- Tension Speed105mm per second
- Package Sizemin. Width 250mm x Height 180mm, max. Width 3000mm x Height 3000mm
- Power Supply230V
- Consumption1.1KW
- Control Voltage24V DC
- DimensionsLength 615mm x Width 332mm x Height 450mm
- Weight118KG
Datasheet
-
- MH610 Download
